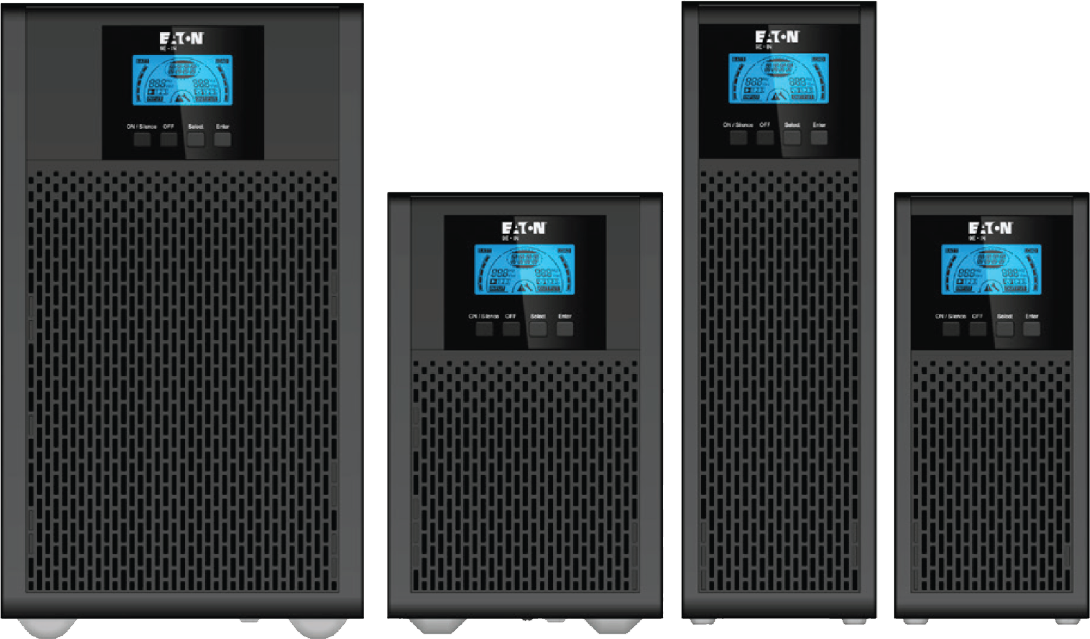

Eaton 9E IN Online UPS (1000-3000VA)

Typical applications –

• Work from home – Routers, Laptop, desktop and other appliances
• Networking/Server/Storage.
• Wiring Closets
• Security and Surveillance System.
• Industrial Automation Control.
• Laboratory Equipment.
• ATM/Telecom/Railway Signaling

Core features

• IGBT Based Rectifier True Online Double Conversion Robust design
• Wide input voltage range: 160~300VAC @ 100% load (linearly derating to 50% load @ 100VAC input).
• Generator Compatible with Wide Input voltage window
• Double Conversion Efficiency >91% & ECO mode efficiency up to 98%
• 100% load @ 0~40C operating temp.
• Active Input Power Factor Correction 0.99.
• O/P power factor 0.9 (O/P power factor 0.8 for long backup model)
• Inbuilt OVCD (Over Voltage Cut-off device)
• Fully conform coated PCBA adaptable to harsh environment
• Offer terminal blocker on 2K/3K rating to connect to big capacity equipment
• Digital Charger Technology provide 02-10 A charging current.
• Easy understanding LCD for convenient installation setup
• WINPOWER software support virtualization transfer application Intelligent Monitoring options.

High Performance

• True Online Double Conversion
• True Input PF 0.99
• True output PF 0.8
• Output THDv 2%
• Higher Power Density
• Higher Efficiency upto 98% in ECO Mode
• Support Critical Virtualization

High Reliability and Adaptability

• Wide Input Voltage Range 110 to 300 Vac
• Inbuilt Hardware Current Limit Technology.
• Upgraded Phase Lock Algorithm
• Inbuilt Over-voltage Cut-off Device
• Inbuilt Over Temperature Protection.
• Up to 50 Degree Celsius operation @50% Load (Specific to XL Model)
• Better Overload Protection upto 105% Constant

High Flexibility and Availability

• Adjustable Charging Current 2A-10 Amps
• Better Short Ckt Handling Capacity.
• Auto Fault Recovery.
• Conformal Coated Boards.
• More Accessories
